| Brand Name : | Geomax |
| Model Number : | High Strength Riveted Geocell |
| Certification : | CE |
| Price : | Negotiation |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 2000㎡ per day |
| Delivery Time : | 7-15days |
PRODUCT DESCRIPTION

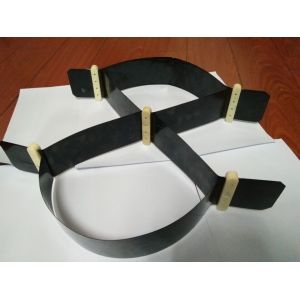

PET High Strength Riveted Geocell Gravel Grid Driveway For Road Envirogrid
Product Introduction
The high-strength geocell is developed and produced by a special processing methods to meet the requirements of different civil engineering for ultra-high tensile strength and low elongation of the cell based on the common geocell processing technology. The cell is made by riveting the whole ribbed strip. Its maximum tensile strength can reach 250Mpa, but its elongation is less than 15%. It has been widely used in the reinforcement of high-speed railways, highway subgrade backfill, loess collapsible subgrade, saline soil and other subgrades.
Specifications
PP High Strength Riveted Geocell
| Model | Height(mm) | Space (mm) | Section size(m) | Sheet Longitudinal tensile strength (≥Mpa) | Sheet horizontal tensile strength (≥kn/m) | Elongation ≤% | Jointing tensile strength (≥kn/m) |
| TGGS50 | 50 | 500-800 | 12.5*4 | 150 | / | 15 | 15 |
| TGGS75 | 75 | 500-800 | 12.5*4 | 150 | / | 15 | 15 |
| TGGS100 | 100 | 500-800 | 12.5*4 | 150 | / | 15 | 15 |
| TGGS150 | 150 | 500-800 | 12.5*4 | 150 | / | 15 | 15 |
| TGGS200 | 200 | 500-800 | 12.5*4 | 150 | / | 15 | 15 |
PET High Strength Riveted Geocell
| Model | Height(mm) | Space (mm) | Section size(m) | Sheet Longitudinal tensile strength (≥kn/m) | Sheet horizontal tensile strength (≥kn/m) | Elongation ≤% | Jointing tensile strength (≥kn/m) |
| TGGS50 | 50 | 500-800 | 12.5*4 | 100 | 15 | 10 | 15 |
| TGGS75 | 75 | 500-800 | 12.5*4 | 100 | 15 | 10 | 15 |
| TGGS100 | 100 | 500-800 | 12.5*4 | 100 | 15 | 10 | 15 |
| TGGS150 | 150 | 500-800 | 12.5*4 | 100 | 15 | 10 | 15 |
| TGGS200 | 200 | 500-800 | 12.5*4 | 100 | 15 | 10 | 15 |
HDPE High Strength Riveted Geocell
| Model | Height(mm) | Space (mm) | Section size(m) | Sheet Longitudinal tensile strength (≥kn/m) | Sheet horizontal tensile strength (≥kn/m) | Elongation ≤% | Jointing tensile strength (≥kn/m) |
| TGGS50 | 50 | 500-800 | 12.5*4 | 30 | 20 | 3 | 15 |
| TGGS75 | 75 | 500-800 | 12.5*4 | 30 | 20 | 3 | 15 |
| TGGS100 | 100 | 500-800 | 12.5*4 | 30 | 20 | 3 | 15 |
| TGGS150 | 150 | 500-800 | 12.5*4 | 30 | 20 | 3 | 15 |
| TGGS200 | 200 | 500-800 | 12.5*4 | 30 | 20 | 3 | 15 |
