Anhui Hechuang New Synthetic Materials Co., Ltd
4 Years
| Ask Lasest Price | |
| Brand Name : | Geomax |
| Model Number : | Polyester Geogrid Pet Geogrid |
| Certification : | CE |
| Price : | Negotiation |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 10000suqre Mater/Day |
| Delivery Time : | 7 -15days |
PRODUCT DESCRIPTION

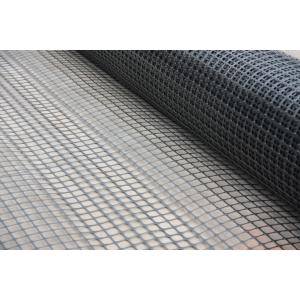

High Strength PVC Coated Warp Knitted Pet Polyester Geogrid With Ce
Product Introduction
PETG polyester geogrid adopts high strength, high modulus,and low shrinkage twisting industrial polyester fiber as raw material.It is warp knitted with oriented structure and in the condition of no bending among warp and weft direction. Its crossing points are bundled and bended together by high strength long polyester fiber forming tough conjunction. Then it forms into mesh size product after coated with high quality oil or water-soluble PVC
Specifications
| Index | Specification | PETBX50/PETUX50 | PETBX60/PETUX60 | PETBX80/PETUX80 | PETBX100/ PETUX100 | PETBX180/ PETUX180 |
| Tensile strength (KN/m) | warp | 50 | 60 | 80 | 100 | 180 |
| weft | 50/30 | 60/30 | 80/30 | 100/30 | 180/30 | |
| roll width (m) | 5.9 | 5.9 | 5.9 | 5.9 | 5.3 | |
| mesh size (mm) | 25*25 | |||||
| elongation (%) | 13 max. | |||||
HCNS Manufacture
Exhibition
|
|
